Tape Applicator

Cross-Web Tape Application

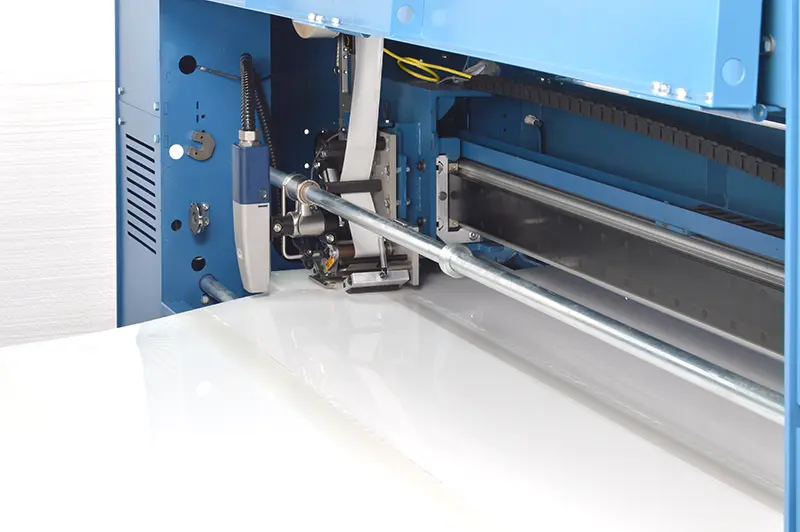

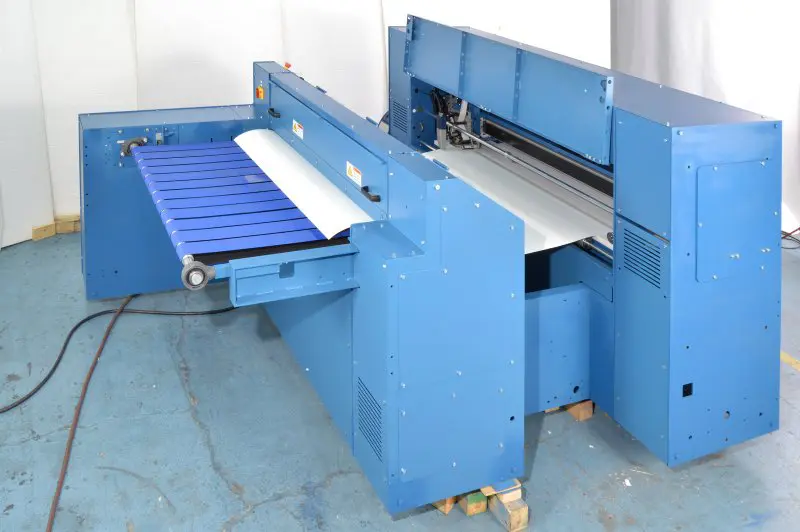

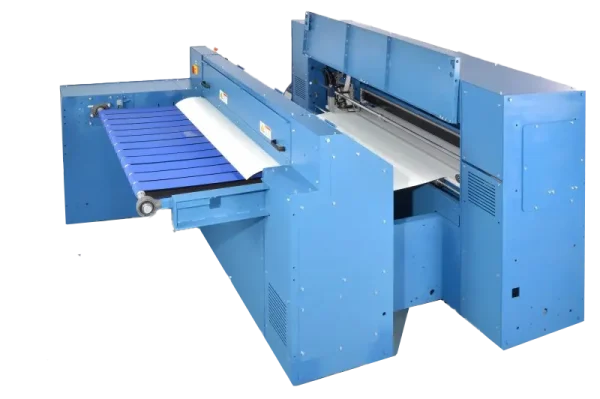

The Rosenthal Tape Applicator is an automated solution for applying the tape required for your sheet or web application. This machine will quickly and precisely apply a strip of double-sided tape on the trailing or leading edge of your material, saving you time and boosting efficiency. Each system is built-to-order and is available in various web width and unwind capacities.

The Tape Applicator can be included in a Rosenthal system or provided as a modular plug-in station that seamlessly integrates with your existing production equipment.

The Tape Applicator comes with a range of add-on options, including Slitting, Unwinding, Cut to Length, Cut to Mark, Printing, Decurling, and Rewinding.

Materials

The Tape Applicator will work with most flexible materials, including:

  • Fabric
  • Felt
  • Fiberglass
  • Film
  • Foil
  • Paper
  • Prepreg
  • Pressure Sensitive Vinyl
  • Rubber

Please contact us to send a sample roll for testing, or if you have any questions about your material’s suitability.

Specifications

Unit PriceStarting at $145,000
Maximum Web Width36″, 48″, 60″, 72″, 84″, 96″
Maximum Web SpeedUp To 140 Feet Per Minute
Cutting MethodScissors Action Shear Up Cut
RepeatabilityUp to +/- 1/64″
Maximum Roll Weight100 lbs, 500 lbs, 750 lbs, 2,000 lbs, 4,000 lbs
Feed LengthInfinitely Adjustable
ControlTouchscreen Interface

Disclaimer: Specifications are subject to change. Performance is material-dependent as the machine stops to cut, and maximum feed speed is affected by material characteristics. Please request a quote for more detailed information, or learn more about our custom order options.

Add-On Options

Slitting

Razor, Score, Shear, or Ultrasonic

Cut to Mark

Trim Printed Graphics

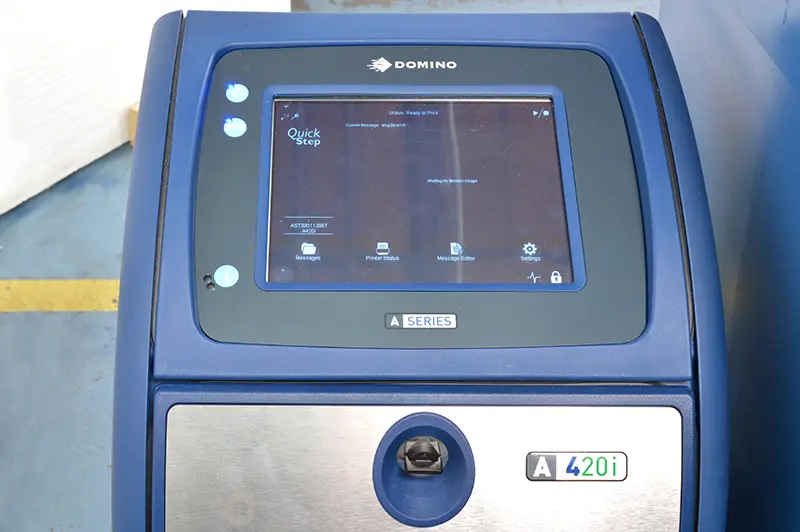

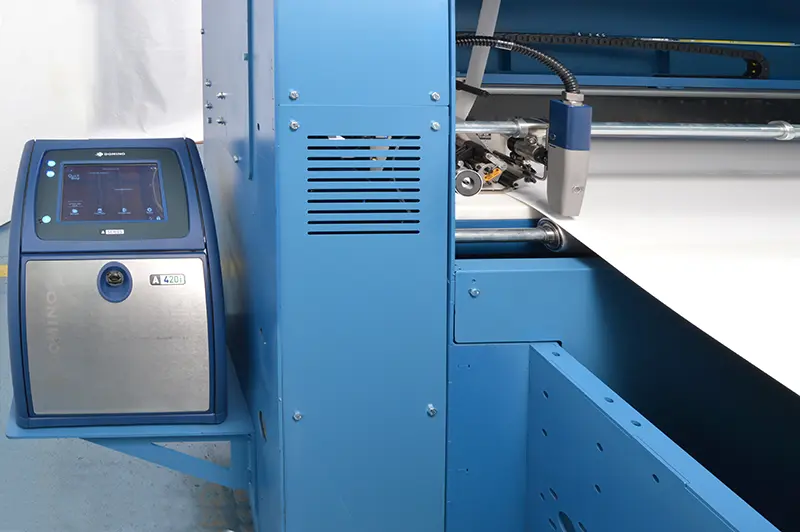

Printing

Inkjet

Edge Guide

Adjust for Telescoped Rolls

Rewinding

Sheet, Slit, and Rewind All in One

Unwinding

Quick Change and High-Capacity Unwind Stands

Output Conveyor

36″ – 120″+

Conveyor Stacker

Neatly Stack Sheets

Image Gallery
