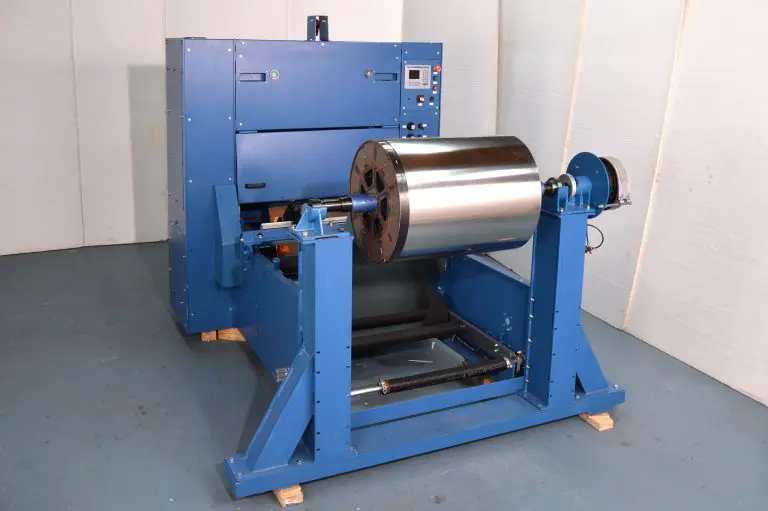

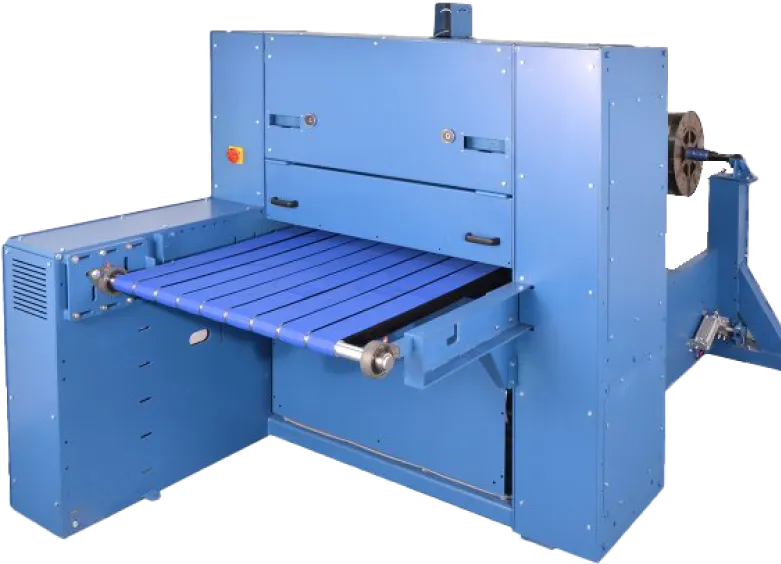

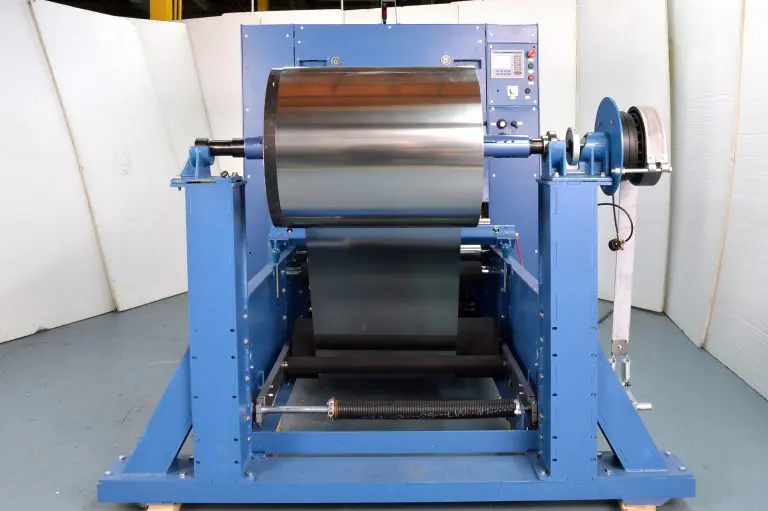

Down Cut Sheeter

Heavy Duty, High-Precision Sheeter

Quickly and accurately convert rolls into sheets of any length with the Rosenthal Down Cut Sheeter. Built with our proprietary scissors action shear-cutting mechanism, you can rely on the Down Cut Sheeter to deliver a clean cut every time on a wide variety of materials. This heavy-duty sheeter comes equipped with PLC control, color touch screen, and vector drive for accurate feeding.

The Down Cut Sheeter is built-to-order and available in a variety of web width and unwind capacities. Explore a range of add-ons to maximize efficiency and savings with your sheeter machine, such as the classic Slitting option, which offers you the dual ability to easily cut your sheets down to a specific length and width at the same time.

Down Cut Sheeter

Model: WM

Other popular add-on options include an Output Conveyor, which assists in carrying cut sheets away from the machine, an Automatic Stacker, and a Lowering Table.

Materials

The Down Cut Sheeter will work with most flexible materials, including:

  • Fabric
  • Felt
  • Fiberglass
  • Film
  • Foil
  • Paper
  • Prepreg
  • Pressure Sensitive Vinyl
  • Rubber

Please contact us to send a sample roll for testing, or if you have any questions about your material’s suitability.

Specifications

Unit PriceStarting at $65,000
Maximum Web Width36″, 48″, 60″, 72″, 84″, 96″
Maximum Web SpeedUp To 150 Feet Per Minute

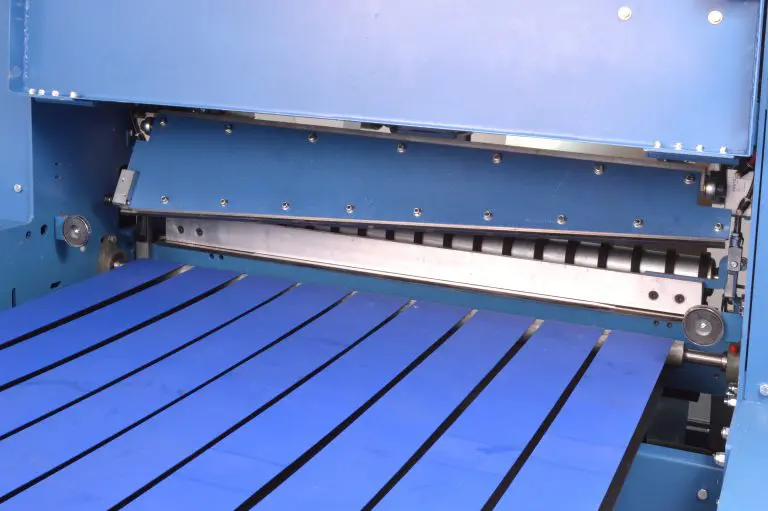

Cutting MethodScissors Action Shear Down Cut
RepeatabilityUp to +/- 1/32″, +/- 1/64″
Maximum Roll Weight100 lbs, 500 lbs, 750 lbs, 2,000 lbs, 4,000 lbs
Feed LengthInfinitely Adjustable
ControlPLC With Color Touchscreen

Disclaimer: Specifications are subject to change. Performance is material-dependent as the machine stops to cut, and maximum feed speed is affected by material characteristics. Please request a quote for more detailed information, or learn more about our custom order options.

Add-On Options

Slitting

Razor, Score, Shear, or Ultrasonic

Cut to Mark

Trim Printed Media

Rewinding

Sheet, Slit, and Rewind All in One

Unwinding

Quick Change and High-Capacity Unwind Stands

Decurling

Reduce Material Curl

Edge Guide

Adjust for Telescoped Rolls

Stacking

Gripper Stacker, Conveyor Stacker, Pick and Place Stacker

Output Conveyor

36″ – 120″+

Videos

Down Cut Sheeter with Stacker

Image Gallery

Down Cut Sheeter with Gripper Stacker

Long Lengths, Difficult Materials

Model: WM GST

The Rosenthal Down Cut Sheeter with Gripper Stacker allows you to quickly and accurately stack the output of your sheeter machine. The gripper mechanism gives you the ability to efficiently stack flimsy or difficult-to-handle materials or materials with long lengths.

The Down Cut Sheeter with Gripper Stacker comes with a range of add-on options that help maximize efficiency and savings with your sheeter machine. For example, the Slitting add-on gives you the ability to cut your sheets down to a specific length and width at the same time, and the Indexing Conveyor add-on automatically loads empty pallets and unloads completed stacks, reducing downtime while changing out stacks.

Explore our Decurling, Rewinding, Cut to Mark, and all other add-on options.

Materials

The Down Cut Sheeter with Gripper Stacker will work with most flexible materials, including:

  • Fabric
  • Felt
  • Fiberglass
  • Film
  • Foil
  • Paper
  • Prepreg
  • Pressure Sensitive Vinyl
  • Rubber

Please contact us to send a sample roll for testing, or if you have any questions about your material’s suitability.

Specifications

Unit PriceStarting at $195,000
Maximum Web Width36″, 48″, 60″, 72″, 84″, 96″, 108″
Maximum Web SpeedUp To 150 Feet Per Minute
Maximum Stack Height24″
Maximum Sheet Length36″, 48″, 60″, 72″, 84″, 96″, 108″, 120″, 132″, 144″, 156″, 168″, 180″  – Larger Capacity Available Upon Request
Cutting MethodScissors Action Shear Down Cut
RepeatabilityUp to +/- 1/32″, +/- 1/64″
Maximum Roll Weight750 lbs, 2,000 lbs, 4,000 lbs, 10,000 lbs

Disclaimer: Specifications are subject to change. Performance is material-dependent as the machine stops to cut, and maximum feed speed is affected by material characteristics. Please request a quote for more detailed information, or learn more about our custom order options.

Add-On Options

Slitting

Razor, Score, Shear, or Ultrasonic

Indexing Conveyor

Automatically Load Empty Pallet and Unload Completed Stacks

Cut to Mark

Trim Printed Media

Decurling

Reduce Material Curl

Edge Guide

Adjust for Telescoped Rolls

Videos

Down Cut Sheeter with Gripper Stacker

Down Cut Sheeter with Gripper Stacker, slitting and auto-satacking add-ons

Down Cut Sheeter with Gripper Stacker

Image Gallery
