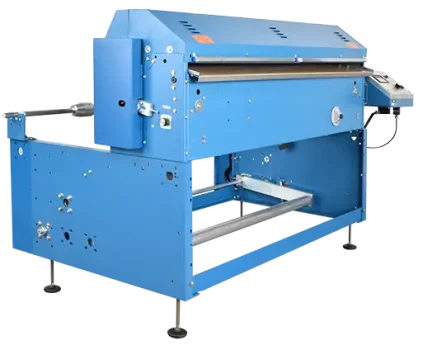

Sheetmaster

Affordable, Compact Sheeter

Model: RCE


Quickly convert rolls of material into sheets of your desired length with the Rosenthal Sheetmaster. Though this sheeter is compact, its capabilities are robust—it cuts rolls of virtually any flexible material in single sheets or in batches. Our proprietary shear up cutting mechanism will deliver a clean, precise cut every time.

Designed and built in the USA, Rosenthal Sheeters have an all-welded, heavy-duty steel frame built to withstand nearly anything you throw its way—delivering you decades of dependable service. Gain even more efficiency with the classic Slitting add-on option, which offers you the dual ability to easily cut your sheets down to a specific length and width at the same time. Our other popular add-ons, including Winding and Cut to Mark, can be explored below.

Materials

The Sheetmaster will work with most flexible materials, including:

  • Fabric
  • Felt
  • Fiberglass
  • Film
  • Foil
  • Paper
  • Prepreg
  • Pressure Sensitive Vinyl
  • Rubber

Please contact us to send a sample roll for testing, or if you have any questions about your material’s suitability.

Specifications

Unit Price: 30” SheetmasterStarting at $30,000
Unit Price: 60” SheetmasterStarting at $38,000
Maximum Web Width30″, 60″
Maximum Web SpeedUp To 140 Feet Per Minute
Cutting MethodScissors Action Up Cut
RepeatabilityUp to +/- 1/8″
Maximum Roll Weight100 lbs, 200 lbs, 500 lbs
Feed LengthInfinitely Adjustable
ControlEnter Length And Quantity

Disclaimer: Specifications are subject to change. Performance is material-dependent as the machine stops to cut, and maximum feed speed is affected by material characteristics. Please request a quote for more detailed information, or learn more about our custom order options.

Add-On Options

Slitting

Razor or Score

Unwinding

Quick Change and High-Capacity Unwind Stands

Cut to Mark

Trim Printed Media

Videos

Sheeter with PLC operation

Sheetmaster

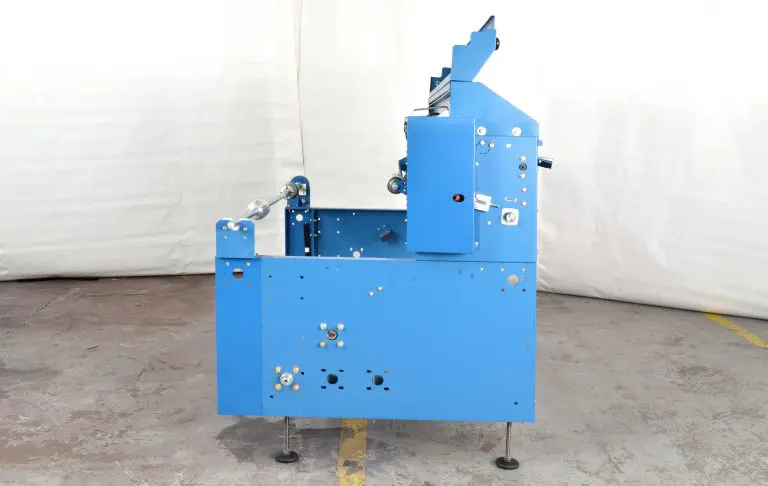

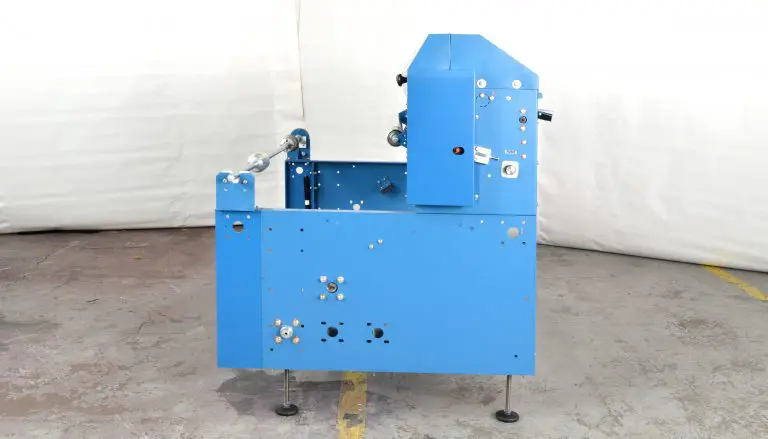

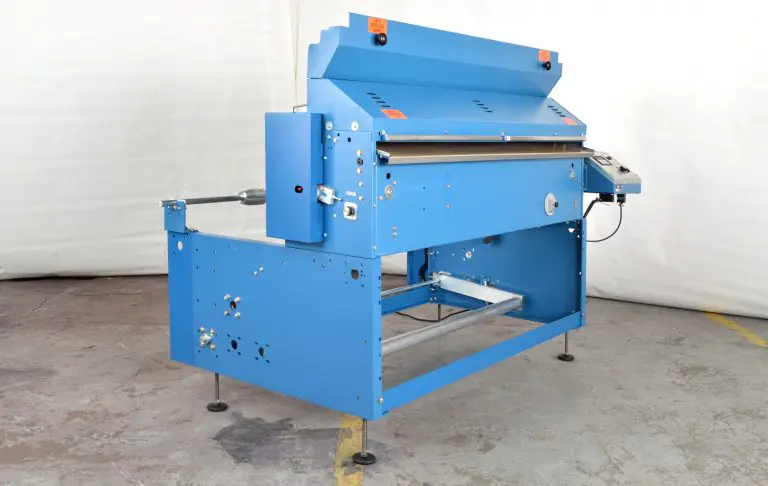

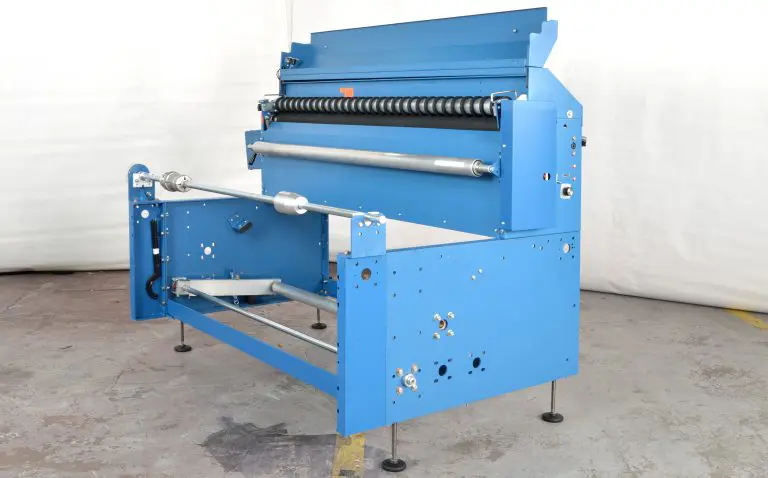

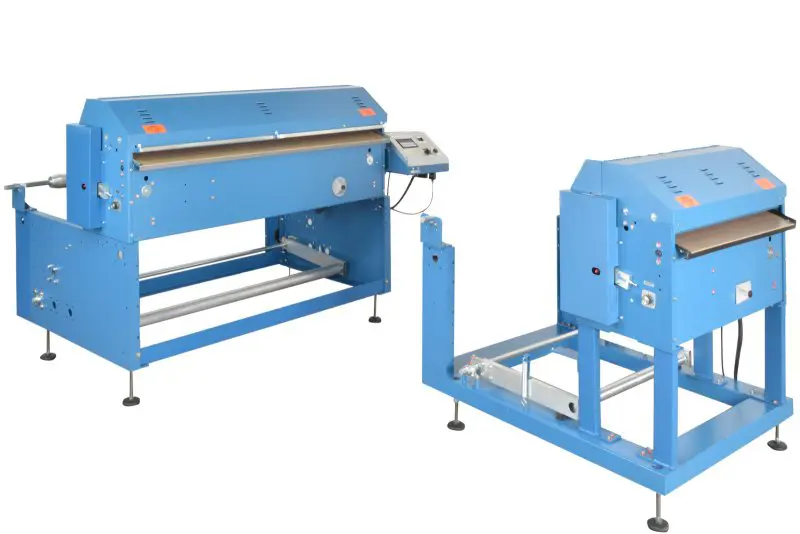

Image Gallery
