Up Cut Sheeter

Dependable, User-Friendly Sheeter

The Rosenthal Up Cut Sheeter is a dependable sheeting machine designed to meet all your in-house sheeting and slitting requirements. Equipped with our proprietary scissors action shear-cutting mechanism, you can rely on the Up Cut Sheeter to deliver a clean cut on a wide variety of materials—even those with large or jumbo-sized widths.

The Up Cut Sheeter’s fully-welded, heavy duty steel frame is built to withstand even the harshest of working conditions and the most difficult-to-handle materials, providing you with decades of dependable service. A color touchscreen and intuitive controls make operation a breeze.

The Up Cut Sheeter is built-to-order and available in a variety of web widths and unwind capacities.

Up Cut Sheeter

Model: WAS

Increase efficiency even further with our classic Slitting add-on, which offers you the dual ability to easily cut your sheets down to a specific length and width at the same time. Other popular add-ons include a Conveyor Stacker, Unwinding, and Rewinding.

Materials

The Rosenthal Up Cut Sheeter will work with most flexible materials, including:

  • Fabric
  • Felt
  • Fiberglass
  • Film
  • Foil
  • Paper
  • Prepreg
  • Pressure Sensitive Vinyl
  • Rubber

Please contact us to send a sample roll for testing, or if you have any questions about your material’s suitability.

Specifications

Unit PriceStarting at $50,000
Maximum Web Width36″, 48″, 60″, 72″, 84″, 96″
Maximum Web SpeedUp To 140 Feet Per Minute
Cutting MethodScissors Action Shear Up Cut
RepeatabilityUp To +/- 1/16″
Maximum Roll Weight100 lbs, 500 lbs, 750 lbs, 2,000 lbs, 4,000 lbs
Feed LengthInfinitely Adjustable
ControlPLC With Touch Screen

Disclaimer: Specifications are subject to change. Performance is material-dependent as the machine stops to cut, and maximum feed speed is affected by material characteristics. Please request a quote for more detailed information, or learn more about our custom order options.

Add-On Options

Slitting

Razor, Score, Shear, or Ultrasonic

Cut to Mark

Trim Printed Graphics

Rewinding

Sheet, Slit, and Rewind All in One

Unwinding

Quick Change and High-Capacity Unwind Stands

Edge Guide

Adjust for Telescoped Rolls

Output Conveyor

36″ – 120″+

Stacker

Conveyor Stacker

Videos

Up Cut Sheeter

Up Cut Sheeter

Image Gallery

Up Cut Sheeter with Conveyor Stacker

High Production, Organized Output

Model: WAS CST

The Rosenthal Up Cut Sheeter with Conveyor Stacker quickly and accurately converts rolls of most flexible materials into neat stacks of sheets at desired dimensions. Our classic Slitting option offers you the dual ability to easily cut your sheets down to a specific length and width at the same time.

Browse all add-on options below, including Cut to Mark, Rewinding, and Edge Guide.

Materials

The Rosenthal Up Cut Sheeter with Conveyor Stacker will work with most flexible materials, including:

  • Paper
  • Film
  • Foil
  • Prepreg
  • Fiberglass
  • Pressure sensitive vinyl
  • Rubber
  • Felt
  • Fabric

Please contact us to send a sample roll for testing, or if you have any questions about your material’s suitability.

Specifications

Unit PriceStarting at $150,000
Maximum Web Width36”, 48”, 60”, 72”, 84”, 96”
Maximum Sheet Length36”, 60”, 84”
Maximum Stack Height24″
Maximum Web SpeedUp To 150 Feet Per Minute
Maximum Roll Weight500 lbs, 750 lbs, 2,000 lbs, 4,000 lbs, 10,000 lbs
Feed LengthInfinitely Adjustable to Stacker Length
ControlPLC with Color Touchscreen

Disclaimer: Specifications are subject to change. Performance is material-dependent as the machine stops to cut, and maximum feed speed is affected by material characteristics. Please request a quote for more detailed information, or learn more about our custom order options.

Add-On Options

Slitting

Razor, Score, Shear, or Ultrasonic

Indexing Conveyor

Improved Downtime for Stack Changes

Dual Stacker

Eliminate Downtime for Stack Changes

Cut to Mark

Trim Printed Graphics

Rewinding

Sheet, Slit, and Rewind All in One

Edge Guide

Adjust for Telescoped Rolls

Videos

Sheeter Slitter with Auto Stacking

Sheeter Conveyor Stacker

Sheeter Conveyor Stacker

Image Gallery

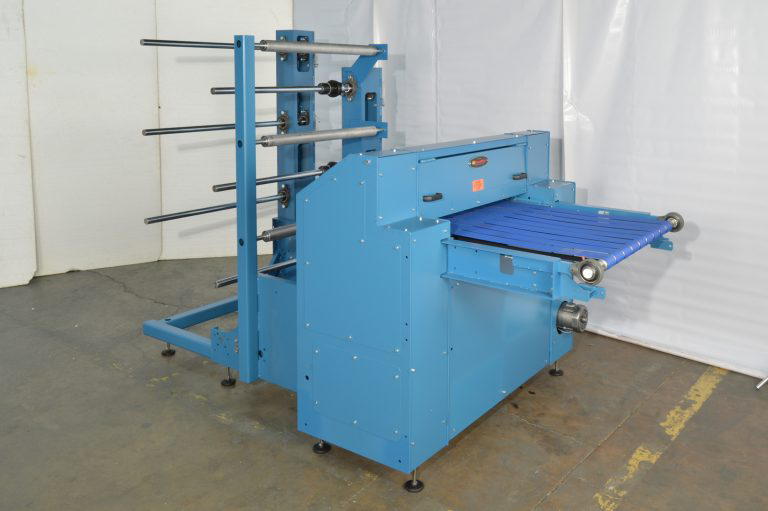

Up Cut Sheeter with Multi-Unwinds

Increased Production & Efficiency

Model: WAS MUW

The Rosenthal Up Cut Sheeter with Multi-Unwinds comes with a variety of unwind roll stand options, including cantilevered, drop-in shaft, or swinging cantilevered. Versatile swinging cantilevered stands are capable of holding rolls as light as 50 pounds and as heavy as 4,000 pounds.

A sheeter with multiple unwind stands enables you to simultaneously run multiple layers of material, potentially increasing production capacity several times over. Rosenthal Up Cut Sheeters have run with as many as 6 layers at once. Multiple unwind stands also drastically reduces material changeover downtime, since additional materials are able to be preloaded.

Explore a range of add-on options to maximize efficiency and savings with your sheeter machine, such as our classic Slitting add-on, which offers you the dual ability to easily cut your sheets down to a specific length and width at the same time. Other popular add-on options include Cut to Mark, Rewinding, Edge Guide, an Output Conveyor, and a Conveyor Stacker.

Materials

The Rosenthal Up Cut Sheeter with Multi-Unwinds will work with most flexible materials, including:

  • Fabric
  • Felt
  • Fiberglass
  • Film
  • Foil
  • Paper
  • Prepreg
  • Pressure Sensitive Vinyl
  • Rubber

Please contact us to send a sample roll for testing, or if you have any questions about your material’s suitability.

Specifications

Unit PriceStarting at $70,000
Maximum Web Width36″, 48″, 60″, 72″, 84″, 96″
Maximum Web SpeedUp To 140 Feet Per Minute
Cutting MethodScissors Action Shear Up Cut
RepeatabilityUp To +/- 1/16″
Maximum Roll Weight100 lbs, 500 lbs, 750 lbs, 2,000 lbs, 4,000 lbs
Feed LengthInfinitely Adjustable
ControlPLC With Touchscreen Interface

Disclaimer: Specifications are subject to change. Performance is material-dependent as the machine stops to cut, and maximum feed speed is affected by material characteristics. Please request a quote for more detailed information, or learn more about our custom order options.

Add-On Options

Slitting

Razor, Score, Shear, or Ultrasonic

Cut to Mark

Trim Printed Graphics

Rewinding

Sheet, Slit, and Rewind All in One

Edge Guide

Adjust for Telescoped Rolls

Output Conveyor

36″ – 120″+

Stacker

Conveyor Stacker

Videos

Sheeter with Double Unwind

Image Gallery
