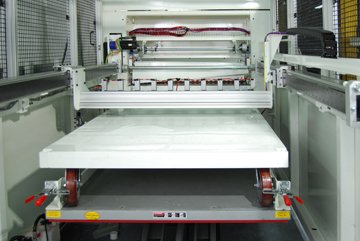

Gripper Stacker

Long Lengths, Difficult Materials

Quickly and accurately stack the output of your sheeter machine, regardless of the materials you’re using, with the Rosenthal Gripper Stacker. While the Conveyor Stacker is built for stacking most flexible materials, the Gripper Stacker is particularly adept at stacking both materials of long lengths and flimsy or difficult-to-handle materials with the utmost precision.

The Indexing Conveyor add-on option gives you the ability to reduce downtime while changing out stacks, further boosting efficiency.

Materials

The Rosenthal Gripper Stacker will work with a wide range of materials, including:

  • Abrasives
  • EVA
  • Fabrics
  • Felt
  • Fiberglass
  • Film
  • Foil
  • Magnetic Vinyl
  • Nonwovens
  • Paper
  • Plastic
  • Polyester
  • Prepreg
  • Pressure Sensitive Vinyl
  • PVC
  • Rubber
  • Tape
  • Vinyl

Please contact us to send a sample roll for testing, or if you have any questions about your material’s suitability.

Specifications

Unit PriceStarting at $195,000
Maximum Web Width36″, 48″, 60″, 72″, 84″, 96″, 108″
Maximum Web SpeedUp To 150 Feet Per Minute
Maximum Sheet Length36″, 48″, 60″, 72″, 84″, 96″, 108″, 120″, 132″, 144″, 156″, 168″, 180″ with Larger Capacity Available Upon Request
Maximum Stack Height24″

Disclaimer: Specifications are subject to change. Performance is material-dependent as the machine stops to cut, and maximum feed speed is affected by material characteristics. Please request a quote for more detailed information, or learn more about our custom order options.

Add-On Options

Indexing Conveyor

Automatically Load Empty Pallet and Unload Completed Stacks

Videos

Rosenthal Sheeter with Gripper Stacker
