Adjustable Angle Sheeter

Flexible, Adaptable Sheeter

Model: RSH


The Rosenthal Adjustable Angle Sheeter’s cut angle is adjustable between +45 degrees to -45 degrees. This versatile feature enables our machine to feed, measure, and cut your material at the desired length into a diverse range of shapes, including trapezoid, parallelogram, and square blanks. The machine’s reciprocating cutting mechanism is available in crush cut or shear cut options, both of which will deliver you a clean cut on a wide variety of materials.

The Adjustable Angle Sheeter is built-to-order and available in a variety of web width and unwind capacities. Like all of Rosenthal’s machines, a range of add-on options are available to further maximize efficiency and savings. The classic Slitting add-on option gives you the ability to easily cut your sheets down to a particular length and width at the same time. Browse our other add-on options below.

Materials

The Rosenthal Adjustable Angle Sheeter will work with most flexible materials, including:

  • Fabric
  • Felt
  • Fiberglass
  • Film
  • Foil
  • Paper
  • Prepreg
  • Pressure Sensitive Vinyl
  • Rubber

Please contact us to send a sample roll for testing, or if you have any questions about your material’s suitability.

Specifications

Unit PriceStarting at $175,000
Maximum Web Width36″, 48″, 60″, 72″, 84″, 96″
Maximum Web SpeedUp To 140 Feet Per Minute
Cutting MethodReciprocating Cut
Maximum Roll Weight100 lbs, 500 lbs, 750 lbs, 2,000 lbs, 4,000 lbs
Feed LengthInfinitely Adjustable
ControlColor Touchscreen

Disclaimer: Specifications are subject to change. Performance is material-dependent as the machine stops to cut, and maximum feed speed is affected by material characteristics. Please request a quote for more detailed information, or learn more about our custom order options.

Add-On Options

Slitting

Razor, Score, or Shear

Unwinding

Quick Change and High-Capacity Unwind Stands

Output Conveyor

36″ – 120″+

Conveyor Stacker

Neatly Stack Sheets

Videos

Fixed 45 degree angle sheeter

Automatic PVB cutting system

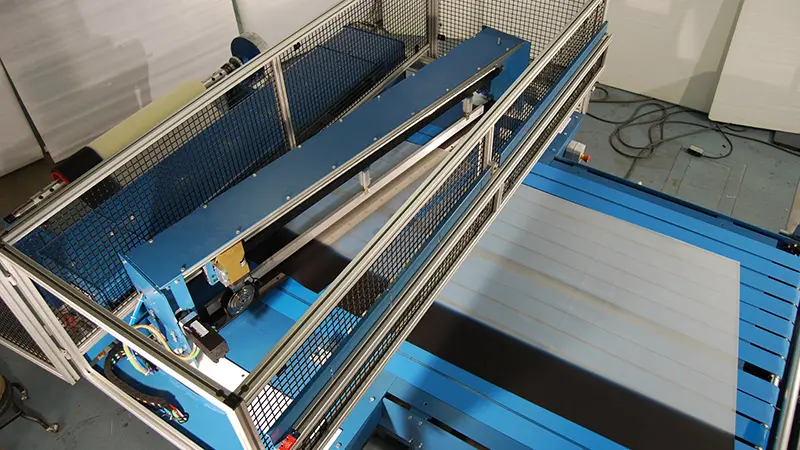

Image Gallery
