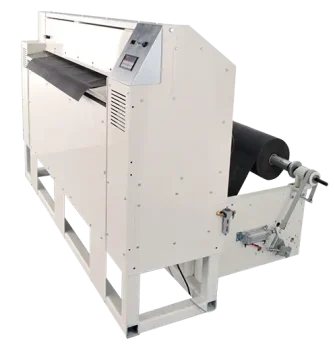

RCE - Sheet Cutter

Affordable Sheeter with Full Performance

With the RCE you can quickly convert rolls into any length sheets you need Operate in batch mode or dispense a single sheet. The compact designs makes the RCE ideal for point of use.

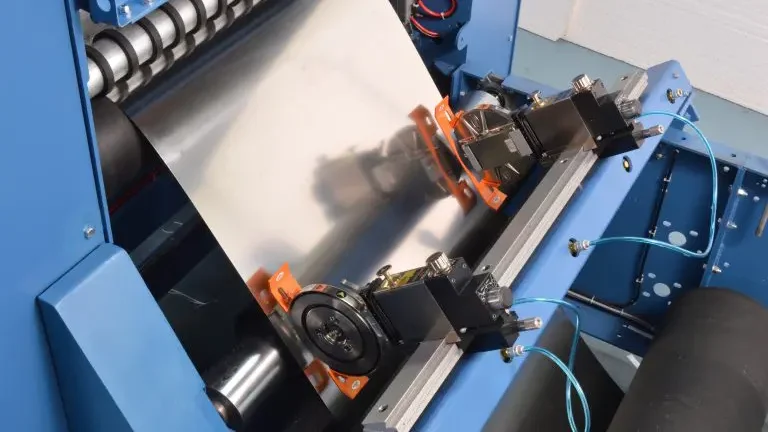

Optional slitting gives you the ability to cut to length and width in a single process.

The proprietary scissors action up cut shear cutting mechanism is virtually maintenance free and delivers a clean cut on a wide variety of materials.

Specifications

Max Web Width 30", 60"
Max Web Speed* 140 fpm
Cutting Method Scissors Action Up Cut
Repeatability* Up to +/- 1/8"
Max Roll Weight 100lbs, 200lbs, 500lbs
Feed Length Infinitely Adjustable
Control Enter Length and Quantity

Options

Slitting Razor or Score
Unwind Quick Change and Higher Capacity Unwinds Available
Cut to Mark Trim Printed Media

Materials

Most flexible materials including: Paper, film, foil, prepreg, fiberglass, pressure sensitive vinyl, rubber, felt, fabric. Please send sample roll for testing.

Disclaimer: *Specifications are subject to change. Performance is material dependent Machine stops to cut, maximum feed speed is effected by material characteristics. Please request a quotation for the latest information.
